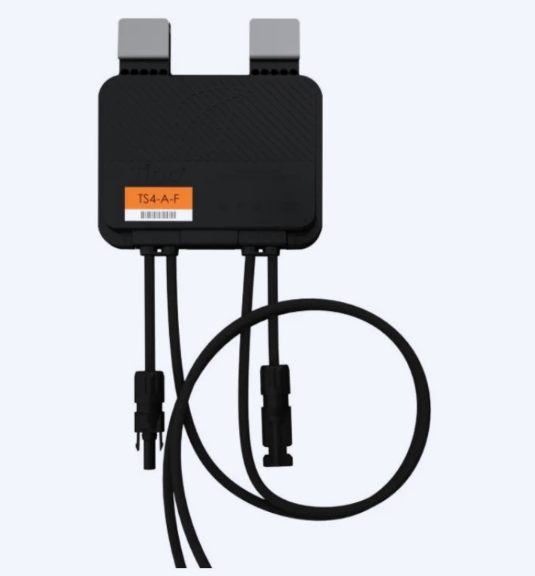

Tigo TS4-A-F Rapid Shutdown Unit 458-00252-32
The TS4-A-F is Tigo’s add-on rapid shutdown device that brings NEC 690.12 compliance to standard PV modules. It snap-mounts to the module frame (or racks without clips), uses PLC signaling over the PV conductors, and automatically enters rapid shutdown on AC grid loss. This model is a 700 W unit rated for high-current modules and outdoor use (IP68/NEMA 3R).
Key Benefits
NEC 2017/2020 690.12 Compliance: PVRSS listed when used with a Tigo RSS Transmitter or a certified inverter.
High-Current Ready: Options now rated up to 20 A Imp / 25 A Isc to support bifacial & high-current modules.
Fast Install: Snap to module frame or remove clips for rack mounting; MC4/EVO2 lead options.
Automatic Shutdown: Array enters rapid shutdown on grid loss within 30 seconds or less.
Special Technology
PLC Signaling: Rapid-shutdown control over the PV conductors; up to 99.9% efficiency electronics.
