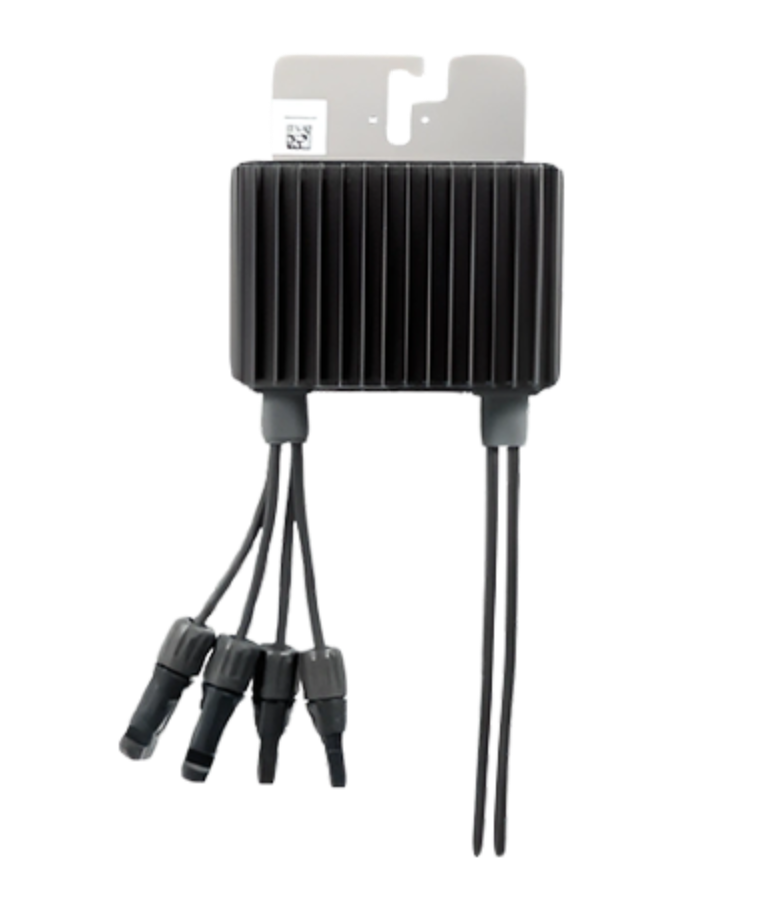

SolarEdge, Optimizer, P860
SolarEdge, Optimizer, P860
Low stock! Only 6 left
Regular price
$30.00
Sale price
$30.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Want next day shipping? Be quick!
Question about this product?
We're happy to help.
Series 5 - MC4 Compatible Input Connectors, MC4 Compatible Output Connectors, For parallel connection of two landscape mounted PV modules up to 860 watts, 1000 Max Vdc
2:1 Optimizer, 860W/120V - Commercial Inverters only - 208V/480V
Note: It is not allowed to mix S-series and P-series Power Optimizers in new installations.
One optimizer per 2 modules with SolarEdge StorEdge Inverter. Mitigates effects from manufacturing tolerance, partial shading & orientation. Flexible system design for maximum space utilization. Fast installation with single bolt.
Specifications
| Model | P860-2XLONG |
| Series | Series 5 |
| Manufacturer | SolarEdge |
Mechanical
| Type | Commercial Power Optimizer (for 2 x 72 cell PV modules) |
| Operating Temperature Range | -40° C to +85° C |
| Compatible SolarEdge Inverters | Three phase inverters |
| Maximum Power per String | 6000 W |
| Parallel Strings of Different Lengths or Orientations | Yes |
| Enclosure | IP68 / NEMA6P |
| Dimensions (W x H x D) | 5" x 5.97" x 2.32" |
| Weight | 2.34 lbs |
| Shipping Method | Ground |
Input (DC)
| Rated Input Power | 860 W |
| Absolute Maximum Input Voltage (Voc at lowest temperature) |
60 VDC |
| MPPT Operating Range | 12.5 - 60 VDC |
| Maximum Short Circuit Current (Isc) | 22 ADC |
| Maximum Short Circuit Current per Input (Isc) | 11 ADC |
| Maximum Efficiency | 99.5% |
| Weighted Efficiency | 98.6% |
| Overvoltage Category | II |
Output (DC)
| Maximum Output Current - During Operation | 18 ADC |
| Maximum Output Voltage | 80 VDC |
Product Description
The SolarEdge power optimizer is a DC/DC converter which is connected by installers to each PV module or embedded by module manufacturers, replacing the traditional solar junction box. The SolarEdge power optimizers increase energy output from PV systems by constantly tracking the maximum power point (MPPT) of each module individually. Furthermore, the power optimizers monitor the performance of each module and communicate performance data to the SolarEdge monitoring portal for enhanced, cost-effective module-level maintenance. Each power optimizer is equipped with the unique SafeDC™ feature which is designed to automatically shut down modules' DC voltage whenever the inverter or grid power is shut down (unless connected to a StorEdge Inverter that is in backup mode).
The MPPT per module allows for flexible installation design with multiple orientations, tilts and module types in the same string. When working with SolarEdge Inverters, SolarEdge power optimizers automatically maintain a fixed string voltage, allowing installers even greater flexibility with longer strings and strings of different lengths in order to design optimal PV systems. The SolarEdge power optimizers are compatible with c-Si and thin-film modules and have a 25 year warranty.
Features
- Specifically designed to work with SolarEdge inverters
- Up to 25% more energy
- Superior efficiency (99.5%)
- Balance of System cost reduction; 50% less cables, fuses and combiner boxes, over 2x longer string lengths possible
- Fast installation with a single bolt
- Advanced maintenance with module-level monitoring
- Module-level voltage shutdown for installer and firefighter safety
- Use with two PV modules connected in series or in parallel
