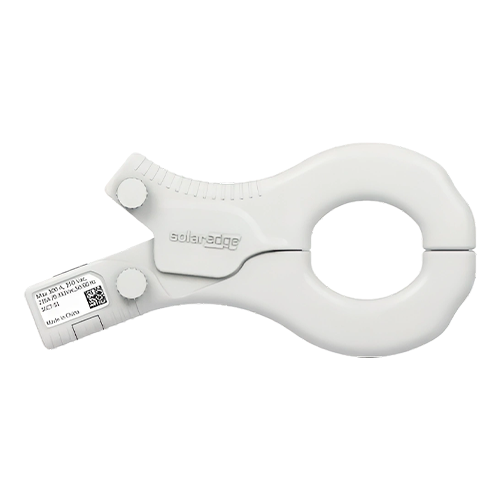

SolarEdge SECT-SPL-225A-T-20-1

Split-Core Current Transformer (2 per box)

The SolarEdge SECT‑SPL‑225A‑T‑20‑1 is a slim, split-core clamp-style current transformer uséd for energy monitoring with SolarEdge systems. It clips around the main service conductors without needing to disconnect wiring and supports up to 225 A, with a continuous rating of 300 A at up to 600 V AC. The transformer provides high measurement accuracy and low phase error, ensuring precise energy consumption or export monitoring. It includes a long lead for easy connection to a meter or inverter and accommodates conductors up to 300 kcmil. It is designed for use with compatible SolarEdge meters or inverters to enable features like home energy tracking, export limitation, and battery or EV charging management.
