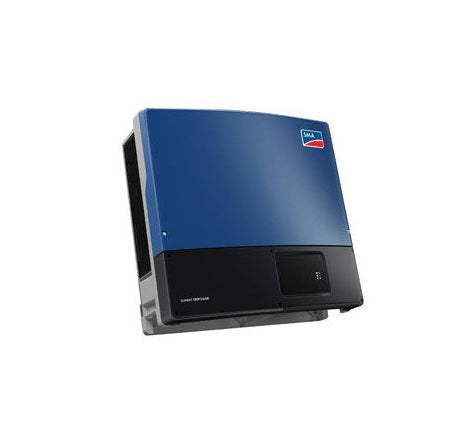

SMA TRIPOWER 24000TL-US-10, Inverter only

SMA TRIPOWER 24000TL-US-10, Inverter only

Regular price $3,299.00 USD
Regular price Sale price $3,299.00 USD
Sale Sold out

SMA, Sunny Tripower 24000TL Inverter Only, Grid tied inverter, 3-Ph, 24kW, 277/480VAC, 60Hz, 600/1000VDC, STP24000TL-US-10

UL-certified Sunny Tripower TL-US is designed specifically to meet American requirements for mid to large-scale decentralized PV systems. With a peak efficiency of above 98 percent, OptiTrac Global Peak shade management, a DC input voltage range of up to 1000 volts – this three-phase, transformerless PV inverter has everything needed to ensure high efficiency. A security the Sunny Tripower can offer, thanks, in part, to integrated arc fault detection. Equipped with two independent MPP trackers, the Sunny Tripower TL-US can be used in applications with input voltages of up to 600 and up to 1000 volts, offering enormous flexibility in the design of a PV system. Grid management functions are of course included as standard as well as the most cutting-edge communication and monitoring technology.

MPPT Circuits and a wide MPPT operating voltage range, combined with a low startup voltage, allows for very high efficiencies. They can be configured for either 600 DC or 1,000 VDC installations. The Tripower inverters can be mounted on the roof, next to the array. This allows compliance with NEC 2014 rapid shutdown requirements without additional components.

***Unit may not be blue in color***

Features

  • Secure - Comprehensive grid management functions. Ethernet-based communication.
  • Efficient - Up to 1000 V DC input voltage range. 98 % efficiency. Shade management with OptiTrac Global Peak.
  • Flexible - Two independent MPP trackers. Various power classes.
