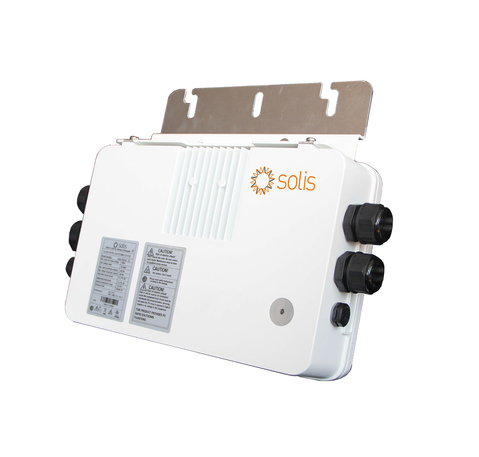

Ginlong, 600Vdc, Rapid Shutdown Box, Solis-RSD1L-1G

Ginlong Technologies, Solis Series, 600VDC Rapid Shutdown Box, One Input, One Output Strings 20A Maximum (31.2 A ISC Max), NEMA 4 X, Solis-RSD1L-1G

The Solis Rapid Shutdown Devices (RSD)comply to all 2014 National Electrical Code 690.12 Rapid Shutdown requirements. NEMA 4X enclosures that fit neatly under the modules. 2 or 3 input and 2 output.

Features

• Highlights - Certified to UL1741 Standard and compliant with 2014 NEC 690.12 Rapid Shutdown. Available in either single channel output or dual channel output allowing for perfect alignment with the number of MPPT channels in the inverter system. No interference with AFCI functionality of Solis inverters. NEMA 4X Enclosure, conformal-coated internal components and a wide operating temperature range. Low profile design allows for easy positioning under the PV module. Pre-wired MC4 connectors for positive, watertight connections. Engineered for the US Solis transformer-less Inverter line and compatible with any PV Module - string inverter combination where the maximum system operating voltage is <550VDC.
