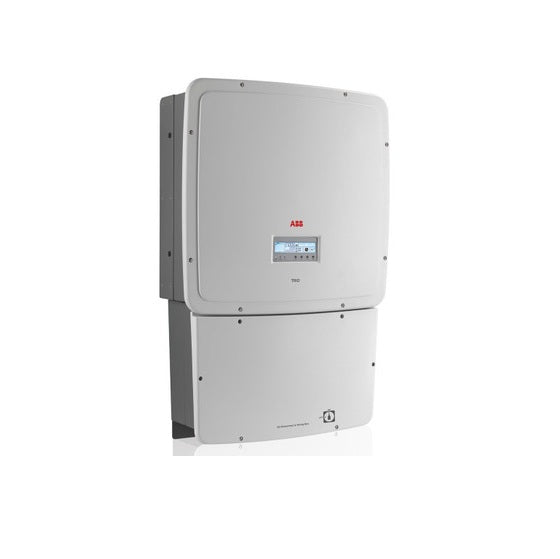

ABB TRIO-20.0-TL-OUTD-S1-US-480-A 20.0kW Inverter

ABB, TRIO-20.0 Grid Tied Inverter, 3-Ph, 20.0kW, 480VAC, 60Hz, 1000VDC, DC Discon, 2 Unfused inputs, 2 MPPT, 10 Yr Warr, Ungrounded, RS485, Arc-Fault Protection, TRIO-20.0-TL-OUTD-S1-US-480-A

1000VDC, three-phase inverter benefits from the three-phase technology perfected in the PVI-10.0 and 12.0, this was the world’s most commonly used three-phase inverter at one point in time.

This device has two independent MPPTs and efficiency ratings of up to 98.2%.

Features

• Highlights - ‘Electrolyte-free’ power converter to further increase the life expectancy and long term reliability. True three-phase bridge topology for DC/AC output converter. Dual input sections with independent MPPT, allows optimal energy harvesting from two sub-arrays oriented in different directions. Detachable wiring box to allow an easy installation. Integrated string combiner with different options of configuration which include a DC disconnect switch, DC fuses and surge protection devices. High speed and precise MPPT algorithm for real time power tracking and improved energy harvesting. Flat efficiency curves ensure high efficiency at all output levels ensuring consistent and stable performance across the entire input voltage and output power range. NEMA4X outdoor enclosure for unrestricted use under any environmental conditions. Auxiliary DC output voltage (24V, 300mA).
